FORM

Advanced Dynamic Line Rating

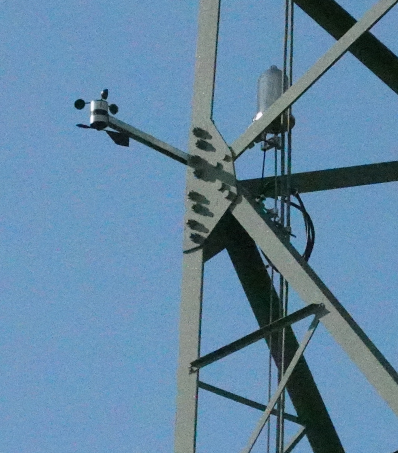

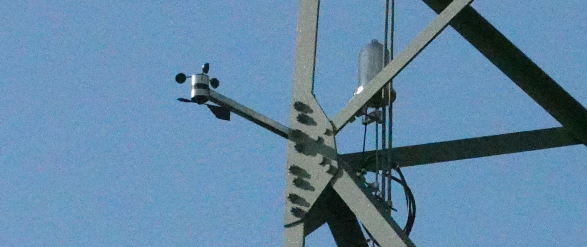

Faseroptisches Anemometer am Freileitungsmast

Ampacity Increase

Dynamic Line Rating = higher current, more flexible grid

Dynamic Line Rating allows transmission system operators to dynamically determine the maximum transferable capacity of their lines based on surrounding conditions.

When wind speed and temperature are known with location accuracy and in real time, lines can very often be used safely well beyond their static limit.

Unfortunately, the resolution and predictive capability of weather service models is not sufficient for safe operation.

We measure directly over the entire length of the line. And adjust the forecasts to the actual conditions.

FORM - Fiber Optics for Rating and Measurement

Measurement methods are based on fiber-optic effects - no auxiliary electrical energy is required at the measurement point
Measured values are transmitted exclusively via the existing fiber optic infrastructure
FORM can be installed on existing equipment, disconnection is usually not required
The monitoring technology is installed in the substations, safe from manipulation
Signal evaluation is stable to changes in operating parameters

What We Do

FORM - a Concept

Measure

FOA + DTS = FORM

We combine innovative fiber optic measurement methods in an unusual way. Fast, secure, independent - and above all, without mobile communications!

Rate

All calculations are based on scientific and technical standards, such as Cigré 601 and VDE-AR 4210-5, for every single section of the entire transmission line.

Unique in the entire industry.

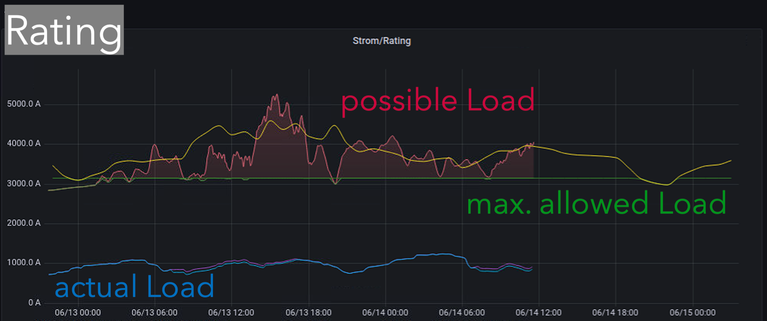

Display

In addition to transmitting the results to SCADA systems of the grid control systems, we also offer new visualization features that take the analysis and traceability of the measurement to a new level.

FORMAdvanced Dynamic Line Rating
